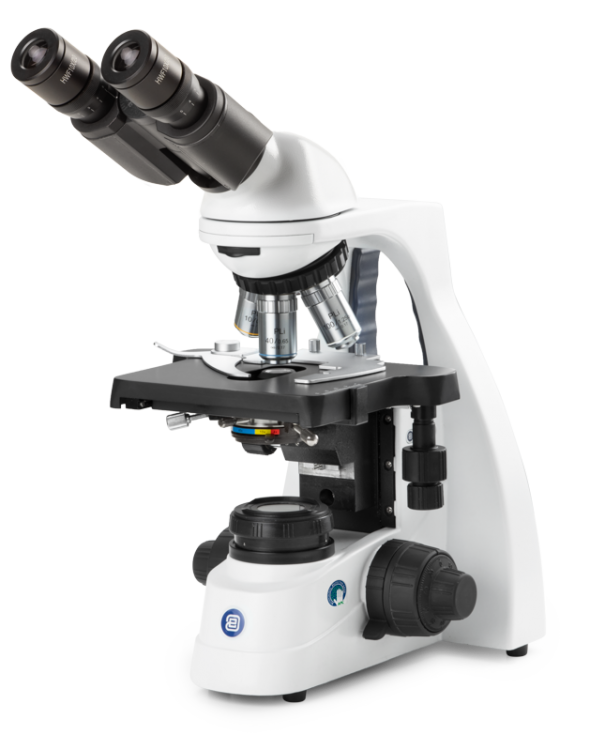

bScope Microscope

The Euromex bScope is a highly adaptable and ergonomically designed upright microscope ideal for secondary schools, universities, mid-sized laboratories, and veterinary practices. Engineered for both comfort and performance, the bScope includes height-adjustable eyepieces and low-positioned stage controls to reduce user fatigue during extended observation sessions. With a variety of configurations available—including bright field, phase contrast, and cardioïd mirror dark field—the bScope ensures accurate and detailed image capture for a wide range of life science applications. Its robust construction and compact footprint, combined with an integrated Cable Storage System, allow for safe, organized, and space-efficient use in any workspace.

Eyepieces

Type: High Wide Field HWF 10x/20 mm

Features:

• 20 mm Field of View (FOV)
• Pointer included in monocular models
• Secured eyepieces with anti-fungus treatment

Viewing Heads

• Monocular: 45° inclined, 23.2 mm diameter tube
• Binocular/Trinocular:
• Siedentopf-type, 360° rotatable, 30° inclined
• Diopter ±5 adjustment on left eyepiece
• Interpupillary range: 48–76 mm
• Unique eyepiece tube swiveling system for ergonomic positioning (377–431 mm height)
• Trinocular head: 23.2 mm phototube, 20:80 beam splitter, erect image
• Digital Model: Integrated 5.0 MP CMOS USB 2.0 camera, 2592 x 1944 pixels

Nosepiece

• Type: Revolving, reversed, ball-bearing
• Capacity: Quadruple or quintuple objective positions

Objectives (45 mm Parfocal Distance)

• Brightfield (Infinity Corrected):
• Plan IOS 4x, 10x, 20x, S40x, S100x oil
• Optional: 60x dry
• Phase Contrast:
• Plan Phase IOS 10x, 20x, S40x, S100x oil
• Darkfield:
• E-Plan 4x, 10x, 20x, S40x, S100x oil with built-in iris
• All spring-loaded: S40x, S60x, and S100x objectives
• Treatment: Anti-fungus, anti-reflection coatings

Focusing

• Type: Coaxial coarse and fine adjustment
• Graduation: 180 divisions
• Precision: 1.11 µm per division, 200 µm/rotation
• Travel Range: ~19 mm
• Features: Adjustable rack stop, friction control

Stage

• Type: Rackless mechanical X-Y stage
• Size: 152/197 x 131 mm
• X-Y Travel: 75 x 36 mm
• Features:
• Vernier scale
• Soft-close specimen holder
• Optional: Integrated heating stage up to 50°C (PID controlled)

Condensers

• Brightfield: Abbe N.A. 1.25 with iris diaphragm and swing-out filter holder
• Phase Contrast (Zernike): NA 1.25 disc with annuli (10x–100x), BF position, swing-out filter holder
• Phase Contrast (Slider): NA 1.25 with slider slot for specific objectives, BF position
• Darkfield:
• Cardioid mirror condenser with 3W LED
• Supplied with PL S100x oil objective (with iris)
• Easily interchangeable with BF condenser

Polarization

• Optional polarizer fits into integrated slot above nosepiece

Illumination

• Type: NeoLED™ 3 W adjustable Köhler illumination
• Power: 100–240 V built-in universal power supply
• Optional: Rechargeable AA batteries
• Features:
• High NA condenser match
• Uniform field illumination
• Low energy, no heat, long life

Camera & Software (Digital Model Only)

• Camera: 5.0 MP CMOS, 1/2.5", USB 2.0
• Resolution:
• 2592x1944 @ 7 fps
• 1280x960 @ 27 fps
• Software: ImageFocus Alpha
• File formats: .jpg, .tif, .bmp, .dicom, .avi
• Measurement & annotation tools
• Windows 10+ (32/64 bit) and Mac OS support
• Includes USB cable and calibration slide (1 mm/100)
