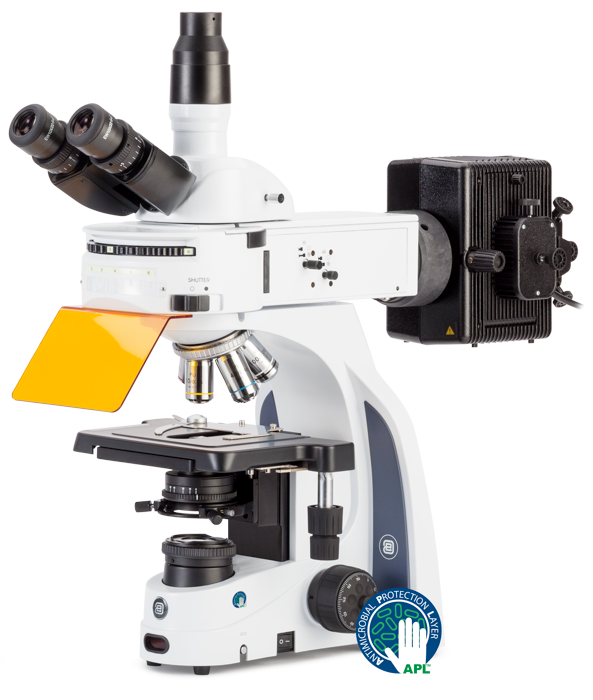

iScope Fluorescence Microscope

The Euromex iScope Fluorescence microscope is designed for biological and medical research, enabling detailed observation of living cells and tissues through fluorescence imaging. By using fluorophores that emit visible light upon excitation, users can identify tumor cells, track cellular processes, or detect antibodies with high specificity. The iScope features precision optics and robust mechanical components, ensuring superior image quality and reliability. It is available with either a 6-position rotating attachment or a 3-position slider, both equipped with a powerful 100 W mercury vapor light source, making it ideal for a wide range of applications in life science, biotechnology, and diagnostic research.

Eyepieces

• Type: Extended Wide Field (EWF) 10x/22 mm
• Tube Diameter: Ø 30 mm
• Security: Lockable to eyepiece tube
• Trinocular (PLi/PLFi): Light path selector (100:0 / 50:50), ±5 diopter on both tubes
• Trinocular (EPLi): Fixed 50:50 beam splitter, ±5 diopter on left tube

Viewing Head

• Type: Binocular or Trinocular Siedentopf
• Inclination: 30°
• Interpupillary Distance: 48–76 mm
• Height Adjustment: Ergonomic rotating system (397–431 mm)
• Phototube: Ø 23.2 mm, compatible with all Euromex C-mount adapters

Optional Configurations:

• Tilting Head: Ref. IS.3158-xxx (EPLi/PLi/PLFi)
• Tilting Trino Head: Ref. IS.3159-xxx (EPLi/PLi/PLFi)

Nosepiece

• Type: Quintuple reversed nosepiece on ball bearings

Objectives (IOS Infinity Corrected)

All optics are anti-fungus treated and anti-reflection coated.

E-Plan EPLi IOS

• 4x/0.10
• 10x/0.25
• S40x/0.65
• S100x/1.25 (oil)

Plan PLi IOS

• 4x/0.10
• 10x/0.25
• 20x/0.40 *
• S40x/0.65
• S60x/0.85 *
• S100x/1.25 (oil)
• *Optional objectives

Plan Fluarex PLFi™ IOS

• 4x/0.13
• 10x/0.30
• 20x/0.50 *
• S40x/0.75
• S100x/1.30 (oil)
• *Optional objective

PLFi™ objectives are optimized for UV, Violet, and full visible spectrum

Stage

• Size: 187/230 x 140 mm
• Travel Range: 79 x 52 mm (X-Y)
• Design: Rackless, double slide holder
• Features: Smooth operation with no protruding parts for safety

Condensers

Brightfield Condenser (Standard)

• Abbe N.A. 1.25, height adjustable with magnification indicator
• Accepts sliders for:
• Phase contrast (10x/20x or S40x/S100x oil)
• Darkfield stop (up to 400x)

Zernike Phase Contrast Condenser (Optional)

• NA 1.25 disc condenser with:
• Phase annuli for 10x, 20x, S40x, S100x oil
• Darkfield position (up to 400x)

Focusing

• Mechanism: Coaxial coarse and fine adjustment
• Graduations: 200 divisions, 1 μm per division
• Travel Range: 24 mm
• Features: Adjustable rack stop, friction control for coarse focus

Illumination

Standard Köhler Illumination

• 3W NeoLED™ diascopic illumination
• Internal power supply: 100–240 V
• Enhanced resolution and contrast, low heat, and long lifespan
• Full Köhler setup for IOS plan and plan phase models
• Optional upgrade for non-IOS models

Fluorescence Illumination

• Attachments:
• 6-position rotating turret
• 3-position slider
• Light Source: 100W HBO mercury vapor
• External power supply with bulb life indicator
• Standard Filter Sets:
• Blue excitation (EX460–490, DM500, EM520 LP)
• Green excitation (EX510–550, DM570, EM580 LP)
• UV excitation (EX330–385, DM400, EM420 LP)
• Violet excitation (EX400–410, DM455, EM455 LP)

LED Fluorescence (Optional)

• 4 or 9 wavelength excitation models available (LE.6400 series)

Additional Features

• iCare Sensor: Auto power-off when not in use to conserve energy
