NexiusZoom EVO Stereo Microscope

The Euromex NexiusZoom EVO stereo microscope offers exceptional optical performance for both industrial and biological applications, enabling detailed three-dimensional observation of surfaces and specimens. With a wide zoom range and optional additional lenses, it provides magnifications from 3.3x to an impressive 220x, making it suitable for high-demand microscopy tasks. The NexiusZoom EVO is available with a variety of stands—with or without integrated LED illumination—catering to different workspace needs in laboratories, production lines, and educational settings. Its versatility, durability, and superior imaging quality make it an ideal tool for quality control, research, and sample preparation.

Eyepieces

• NexiusZoom: HWF 10x/22 mm
• NexiusZoom EVO: HWF 10x/23 mm
• Optional: Eyepieces with crosshairs, micrometer scale, 20x20 grid (available for both transmitted and reflected illumination)

Head

• Binocular or trinocular Siedentopf head, 45° inclined
• Interpupillary distance: 54–75 mm
• ±5 diopter adjustment on both eyepieces
• Trinocular head with fixed 50:50 light path
• EVO models feature click-stops

Objectives

• NexiusZoom: 1:6.7 Plan Achromatic Zoom Objective (0.67x–4.5x)
• NexiusZoom EVO: 1:8.4 Plan Achromatic Zoom Objective (0.65x–5.5x)
• Working distance: 110 mm
• Field of view: up to 35.4 mm
• Auxiliary lenses available: 0.3x, 0.4x, 0.5x, 0.75x, 1.5x, 2.0x
• All optics anti-fungus treated & anti-reflection coated

Polarization (Optional)

• 360° rotatable stage with built-in polarization filter
• Rotatable analyzer filter (mountable under objective)

Magnification Range

• With auxiliary lenses, magnification ranges from 2x to 110x
• Field of view varies by combination; see table for complete values

Stand Options

• P/S stands: Pillar or rack & pinion, 3W LED (incident + transmitted)
• PL stand: Pillar stand, dual gooseneck incident LEDs + transmitted LED
• M stand: Mirror-based ergonomic pillar stand with both illuminations
• U/B/BC stands: Universal/boom stands, no illumination

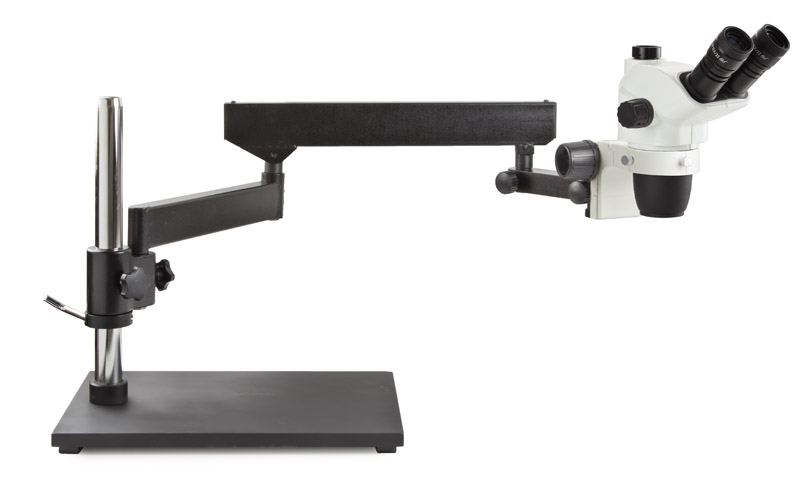

• A/AP stands: Articulated arm stands (table or desktop), no illumination
• NZ.9047: Lightweight articulated arm stand with head holder
• All pillar/rack stands include object clamps and durable alloy build

Stage (Optional)

• New mechanical X-Y stage: 180 × 155 mm base with 76 × 55 mm translation, transparent glass plate
• Factory-mounted; must be ordered with a new microscope

Illumination

• Built-in 3 W LED incident and transmitted lighting, adjustable separately
• Operates on 100–240 V with internal power supply
• Both light sources can be used simultaneously

Compatibility

• Most auxiliary lenses are compatible with standard and EVO NexiusZoom models
• See compatibility table for specific model-lens fitment
