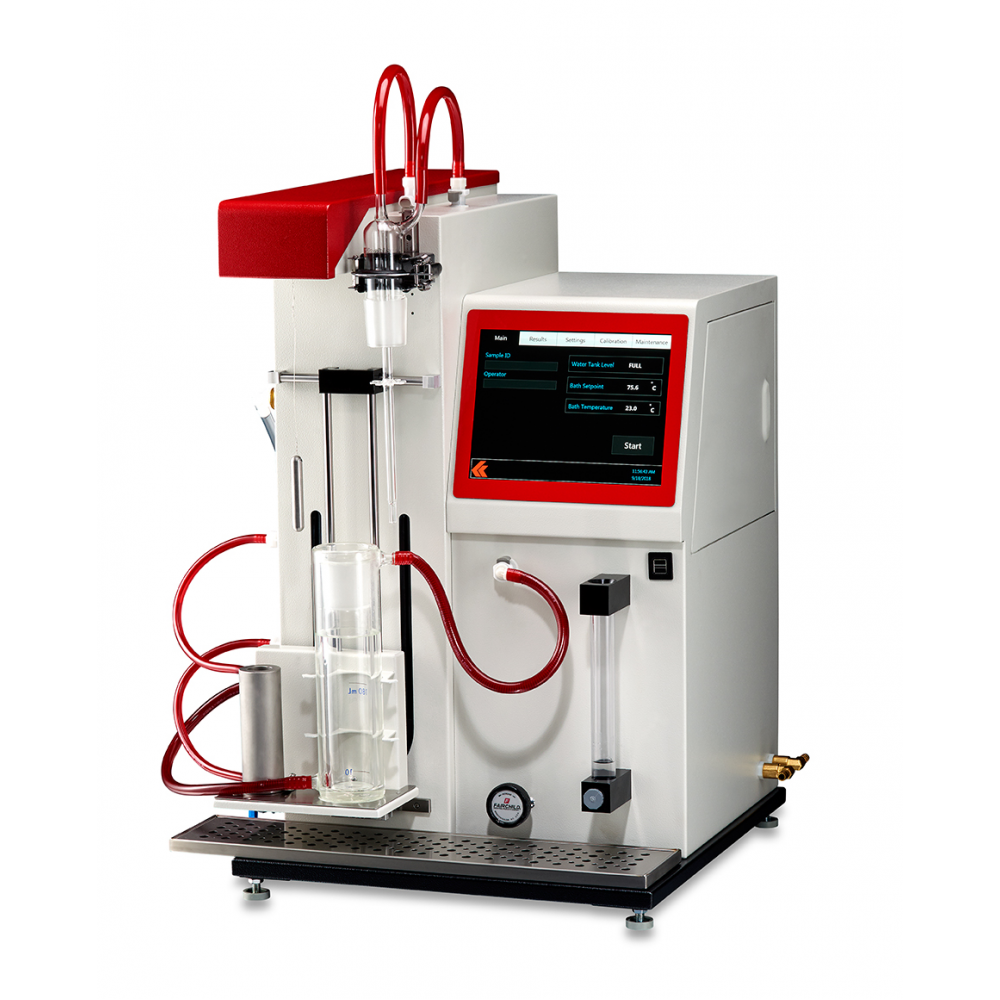

The Koehler Automated Air Release Value Analyzer is a state-of-the-art instrument engineered to assess the air release properties of turbine, hydraulic, and lubricating oils—critical for systems where agitation leads to air entrainment. Fully conforming to ASTM D3427, IP 313, ISO 9120, DIN 51381, NF E 48-614, NF T 60-149, and BS 2000 Part 313, the Koehler system guarantees compliance with global industry standards. Featuring a user-friendly integrated touchscreen control panel, the analyzer guides users through the complete test cycle, including automatic density measurement and air release time evaluation. Designed to operate within a temperature range of ambient to 75 °C, it offers superior thermal stability (±0.1 °C for the sample and ±0.2 °C for the air) and high density accuracy (±0.001 g/mL). Additional key features of the Koehler Air Release Analyzer include an automated lift system for moving the test vessel, an integrated circulation bath with water level indicator, secure clamp mechanism for the air tube, automatic jacketed vessel draining, and LIMS compatibility. Altogether, the Koehler analyzer delivers a safe, reliable, and efficient testing solution tailored to meet the demands of modern lubricant and oil testing laboratories.
