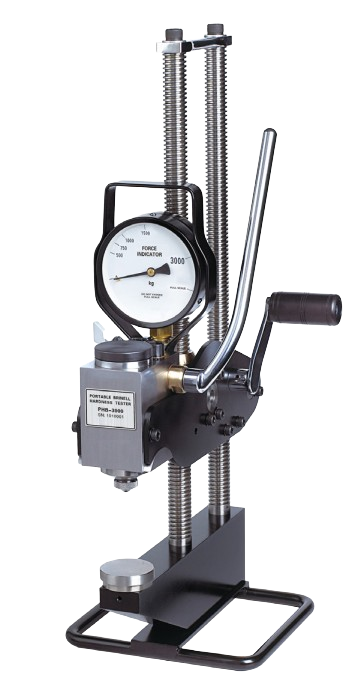

HBT-3000 Portable Brinell Hardness Tester ASTM E110 standards Eqbay UAE

The HBT-3000 Portable Brinell Hardness Tester is a versatile and robust mobile tester designed for precise measurement of metal and alloy hardness. Its hydraulic hand operated mechanism applies up to 3000 kg test load using a 10 mm carbide ball indenter, producing accurate and repeatable results according to ISO 6506 and ASTM E110 standards.

Built for mobility and convenience, the HBT-3000 can test parts of all sizes and in any orientation including upside down, side faces, or difficult-to-reach locations making it ideal for on-site inspections, industrial plants, and laboratory applications. Its durable construction ensures long-lasting performance, even in challenging work environments.

The tester accommodates a wide range of metals, including rough castings, forgings, nonferrous alloys, and heat-treated semi-finished products. Multiple anvils are included flat, V-type, and dome-type—for versatile sample testing, and optional accessories such as a chain adapter allow measurement of larger samples.

Key Features

·      Portable, hydraulic Brinell hardness tester for metals and alloys

·      Test load: 3000 kg (optional 500, 750, 1000 kg)

·      Measuring range: 32–650 HBW

·      Maximum sample height: 35 cm; depth: 10 cm

·      High accuracy and repeatability per ISO 6506 & ASTM E110

·      Suitable for rough castings, forgings, nonferrous metals, and heat-treated products

·      Mobile, bench-top, and on-site testing capability

·      Multiple anvils for versatile applications

·      Optional chain adapter for large or irregular samples

Standard Delivery:

·      Test Head with stand

·      10 mm carbide ball indenter

·      Flat, V, and dome-type anvils

·      20x microscope

·      Hardness test block

·      Manual

·      Factory certificate

Optional Accessories:

·      Chain adapter

·      Certified hardness test blocks
