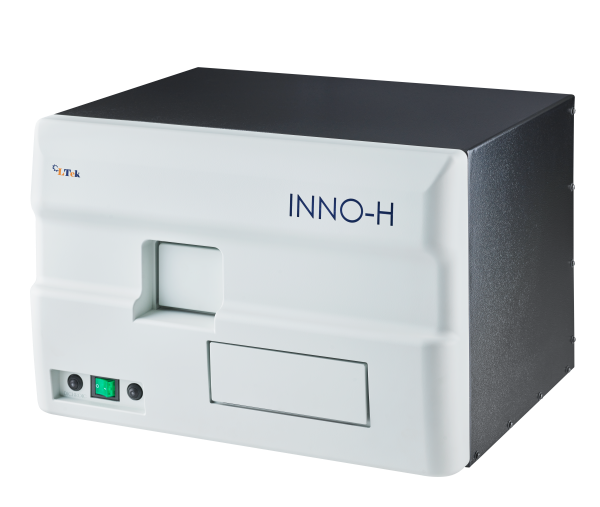

INNO-H Absorbance, Luminescence & Fluorescence Microplate Reader

The INNO-H Microplate Reader by LTEK is a powerful multimode system engineered to support a wide range of detection technologies including UV Vis absorbance, monochromator and filter based fluorescence, dichroic intensity, fluorescence polarization, time resolved fluorescence (TRF), and luminescence. With a wavelength range from 200 to 999 nm, superior sensitivity down to attomole levels, and advanced photomultiplier tube (PMT) detection, the INNO-H delivers unmatched performance for demanding applications such as nucleic acid quantification, protein assays, enzyme kinetics, drug discovery, and cell based assays. Equipped with temperature control up to 45 °C, versatile shaking modes, and optional reagent injectors, it ensures reproducible results across multiple assay types. The system is compatible with 6 to 384 well plates and specialized labware such as the NANO VC microvolume plate and INNO Q quality check plate. With robust INNO X software and optional CFR Part 11 compliance, the LTEK INNO H combines advanced optics, flexible assay formats, and rigorous quality assurance, making it a trusted platform for modern laboratories.

Key Features

• Detection Modes: UV Vis absorbance, monochromator/filter based fluorescence, dichroic intensity, fluorescence polarization, TRF, and luminescence
• Wavelength Range: 200 to 999 nm (absorbance), 250–700 nm fluorescence (option to 850 nm), 200–700 nm luminescence (option to 850 nm)
• Sensitivity: Fluorescein detection as low as 0.25 pM (filter based) and 2.5 pM (monochromator based); luminescence sensitivity down to 10 amol ATP
• Reading Modes: End point, kinetic, spectral scanning, well area scanning
• Microplate Compatibility: 6 to 384 well plates with optional microvolume plate (2–2.5 μL samples)
• Temperature Control: Up to 45 °C ±0.2 °C at 37 °C with linear, orbital, and double orbital shaking
• Accuracy & Precision: OD accuracy within 1% and repeatability <0.5% at 2.0 OD
• Optional Accessories: INNO D dual reagent injector, NANO VC microvolume plate
• Software: INNO X basic software with optional INNO XS for 21 CFR Part 11 compliance
• Certifications: CE, RoHS, ISO 9001, ISO 13485, ISO 14001
• Compact Design: Dimensions 500W × 410L × 360H mm, weight 25 kg
