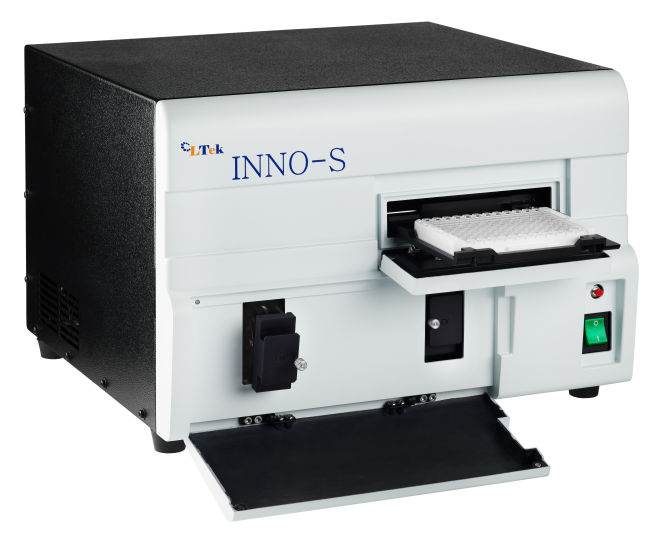

INNO-S Absorbance, Luminescence & Fluorescence Microplate Reader

The INNO-S Microplate Reader by LTEK is a versatile multimode instrument designed to meet the diverse demands of modern life science and clinical laboratories. Supporting UV-Vis absorbance, filter-based fluorescence intensity, luminescence, and time-resolved fluorescence (TRF), it provides reliable results across a wide range of applications such as nucleic acid and protein quantification, enzyme kinetics, cell-based assays, and drug discovery research. With high sensitivity down to 10 amol ATP, wide dynamic ranges, and advanced LED-PMT detection technology, the INNO-S ensures exceptional performance in both research and diagnostic workflows. It offers temperature control up to 50 °C, multiple shaking options, and compatibility with 6- to 384-well plates as well as specialized microvolume plates. Users can enhance system flexibility with optional dual reagent injectors, microvolume plates, and customizable fluorescence filter sets. Backed by CE, IVD, RoHS, and ISO certifications, along with optional 21 CFR Part 11 compliant software, the LTEK INNO-S is a reliable and future-ready solution for laboratories that demand accuracy, efficiency, and compliance.

Key Features

• Detection Modes: UV-Vis absorbance, fluorescence intensity, luminescence, TRF (time-resolved fluorescence)
• Reading Methods: End point, kinetic, spectral scanning, well-area scanning
• Temperature Control: Up to 50 °C ±0.2 °C at 37 °C with linear, orbital, and double orbital shaking (4 speeds)
• Absorbance Performance: 200–999 nm wavelength range, OD accuracy ±1% ±0.010, OD linearity <1% from 0 to 3.0 OD
• Fluorescence Sensitivity: 5 pM fluorescein detection (top and bottom), >6 decades dynamic range
• Luminescence Sensitivity: 10 amol ATP, >7 decades dynamic range, low-noise PMT detection
• TRF Capability: High-power LED excitation with filter-based PMT detection
• Microplate Compatibility: 6- to 384-well plates plus optional NANO-VC microvolume plate (2–2.5 µL samples)
• Optional Accessories: INNO-D dual reagent injector, NANO-VC microvolume plate, INNO-Q quality check plate, customizable filter sets
• Certifications: IVD, CE, RoHS, ISO 9001, ISO 13485, ISO 14001, optional 21 CFR Part 11 compliance
• Compact Design: 408W × 390L × 290H mm, weight 18.2 kg
