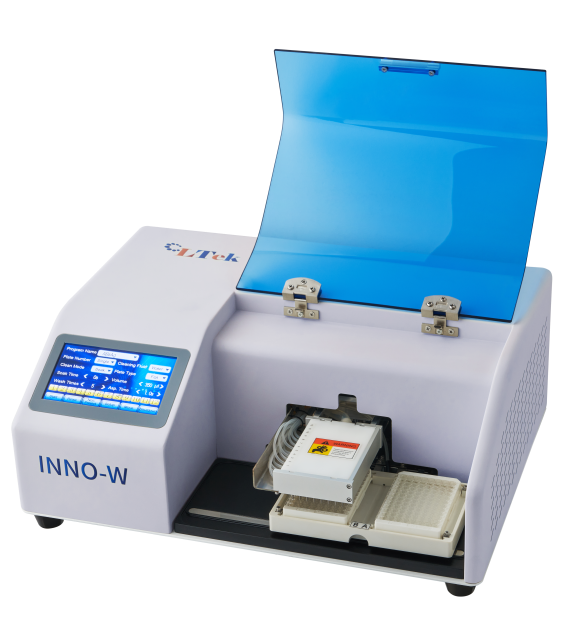

INNO-W96 Microplate Washer

The INNO-W96 Microplate Washer by LTEK is engineered to deliver precise, efficient, and reliable washing performance for laboratories handling ELISA, immunoassays, and other microplate-based applications. With a 96-pin cleaning head that allows single-row control, the system ensures thorough washing and minimal cross-contamination across multiple microplate formats, including flat, U, V, and round bottom plates. Its advanced liquid handling system supports three injection channels, programmable washing modes, and adjustable suction and flush times to meet diverse assay requirements. A user-friendly 7-inch touch display enables intuitive operation, while up to 200 programmable wash protocols provide maximum flexibility for routine or complex workflows. Built for accuracy and efficiency, the INNO-W96 achieves an average residual volume of less than 0.7 µL per well, ensuring consistent assay results. Compact and robust, it is designed to enhance productivity and reliability in diagnostic, research, and quality control laboratories.

Key Features

• Cleaning Head: 96 pins with single-row controllable washing
• Microplate Compatibility: Supports flat, U, V, and round bottom plates
• Residue Control: Average residual volume <0.7 µL per well
• Washing Precision: Adjustable liquid suction time (0.1–999.9 seconds, 0.1 s intervals)
• Flexible Programs: Up to 200 washing programs with customizable parameters
• Line Flush: Adjustable from 0–240 seconds
• Liquid Channels: 3 independent channels (2 lotion types, 1 distilled water)
• Needle Positioning: Six options (horizontal, left, middle, right, bottom, hole spacing)
• Display: 7-inch full-color touch display for easy programming and operation
• Power & Consumption: 350 W, AC220V±10% 50/60Hz or 110V±10% 60Hz
• Dimensions & Weight: Packing size 740W × 675D × 562H mm, gross weight 42 kg
