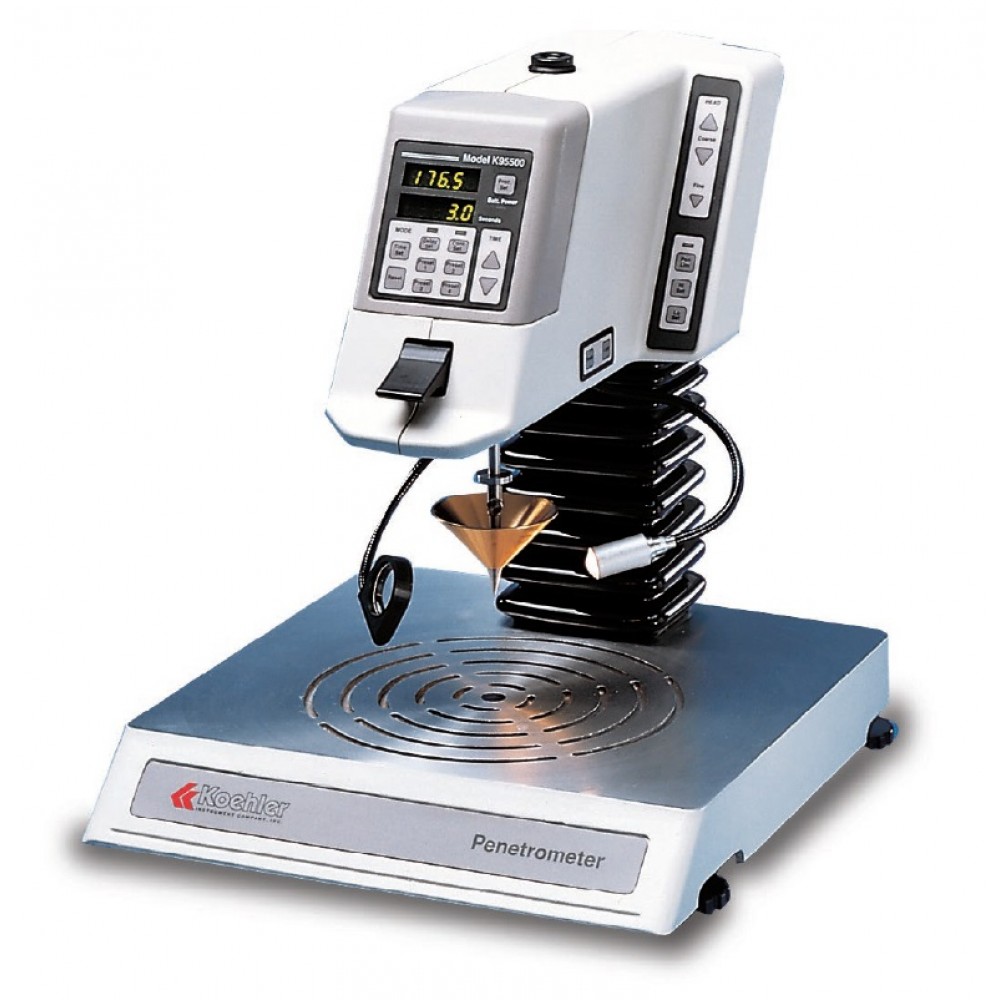

Koehler K95590 Digital Penetrometer

The Koehler K95590 Digital Penetrometer is a microprocessor-based instrument engineered for highly accurate and repeatable penetration measurements of lubricating greases, petroleum waxes, bitumens, pastes, creams, and similar semi-solid substances. Fully compliant with ASTM, IP, ISO, DIN, FTM, AOCS, AACC, and NFT standards—including ASTM D5, D217, D937, D1403, D2884, D4950, and ISO 2137—the instrument utilizes a motorized mechanism to position a standard cone or needle above the sample and release it for a programmable interval (default: 5.0 seconds). With a penetration range of 0–62.0 mm (0–620 on 1⁄10 mm scale), results are digitally displayed in either 1⁄10 mm or 1⁄100 mm increments and can be exported via the built-in RS232 interface for documentation or further analysis. The system features four programmable presets for consistent tip placement and includes coarse/fine adjustments and a built-in magnifier and illuminator for sample surface visualization. An automatic surface detection circuit further enhances accuracy, especially for electrically conductive materials. Test settings such as delay intervals, penetration time, and acceptable measurement ranges are stored in memory and auto-repeated in subsequent runs. The large, removable base accommodates various sample containers and can be detached for integration with temperature control baths. The unit operates via standard AC or its built-in rechargeable battery, making it suitable for both lab and field use. Whether for quality control or research, the K95590 offers unmatched precision and user-friendly functionality for consistency testing across a wide range of materials.
